app-inspector元素定位工具使用介绍

前置安装配置,包括如下:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
info AppiumDoctor  ✔ The Node.js binary was found at: /usr/local/bin/node
info AppiumDoctor ✔ Node version is 6.9.0
info AppiumDoctor ✔ Xcode is installed at: /Applications/Xcode.app/Contents/Developer
info AppiumDoctor ✔ Xcode Command Line Tools are installed.
info AppiumDoctor ✔ DevToolsSecurity is enabled.
info AppiumDoctor ✔ The Authorization DB is set up properly.
info AppiumDoctor ✔ Carthage was found at: /usr/local/bin/carthage
info AppiumDoctor ✔ HOME is set to: /Users/taoyi
info AppiumDoctor ✔ ANDROID_HOME is set to: /opt/android-sdk-macosx
info AppiumDoctor ✔ JAVA_HOME is set to: /Library/Java/JavaVirtualMachines/jdk1.8.0_91.jdk/Contents/Home
info AppiumDoctor ✔ adb exists at: /opt/android-sdk-macosx/platform-tools/adb
info AppiumDoctor ✔ android exists at: /opt/android-sdk-macosx/tools/android
info AppiumDoctor ✔ emulator exists at: /opt/android-sdk-macosx/tools/emulator
info AppiumDoctor ✔ Bin directory of $JAVA_HOME is set

安装app-inspector

1
npm install -g app-inspector

获取设备UDID

1
2
adb devices                 # android
xcrun simctl list # IOS

启动app-inspector

1
app-inspector -u YOUR-DEVICE-ID

启动成功

1
2
3
4
5
6
7
8
➜  ~ app-inspector -u 0862E662-79FE-4831-9EF7-D0D0D1055FFF
>> xctest-client start with port: 8900
>> WebDriverAgent version: 1.0.41
>> iOS device started: 0862E662-79FE-4831-9EF7-D0D0D1055FFF
>> inspector start at: http://192.168.31.20:5678
<-- GET /
--> GET / 200
...

浏览器查看结果如图:

ANDROID启动成功

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
➜  ~ app-inspector -u 127.0.0.1:62001
INSTRUMENTATION_STATUS: numtests=1
>> socket server ready
>> socket client ready
>> Android device started: 127.0.0.1:62001
>> inspector start at: http://172.16.8.99:5678
<-- GET /
recive: {"cmd":"getSource","args":{}}

return: {"data":{"value":true,"status":0},"success":true}

>> Dump Android XML success, save to /usr/local/lib/node_modules/app-inspector/.temp/android.json
--> GET / 200
<-- GET /
···

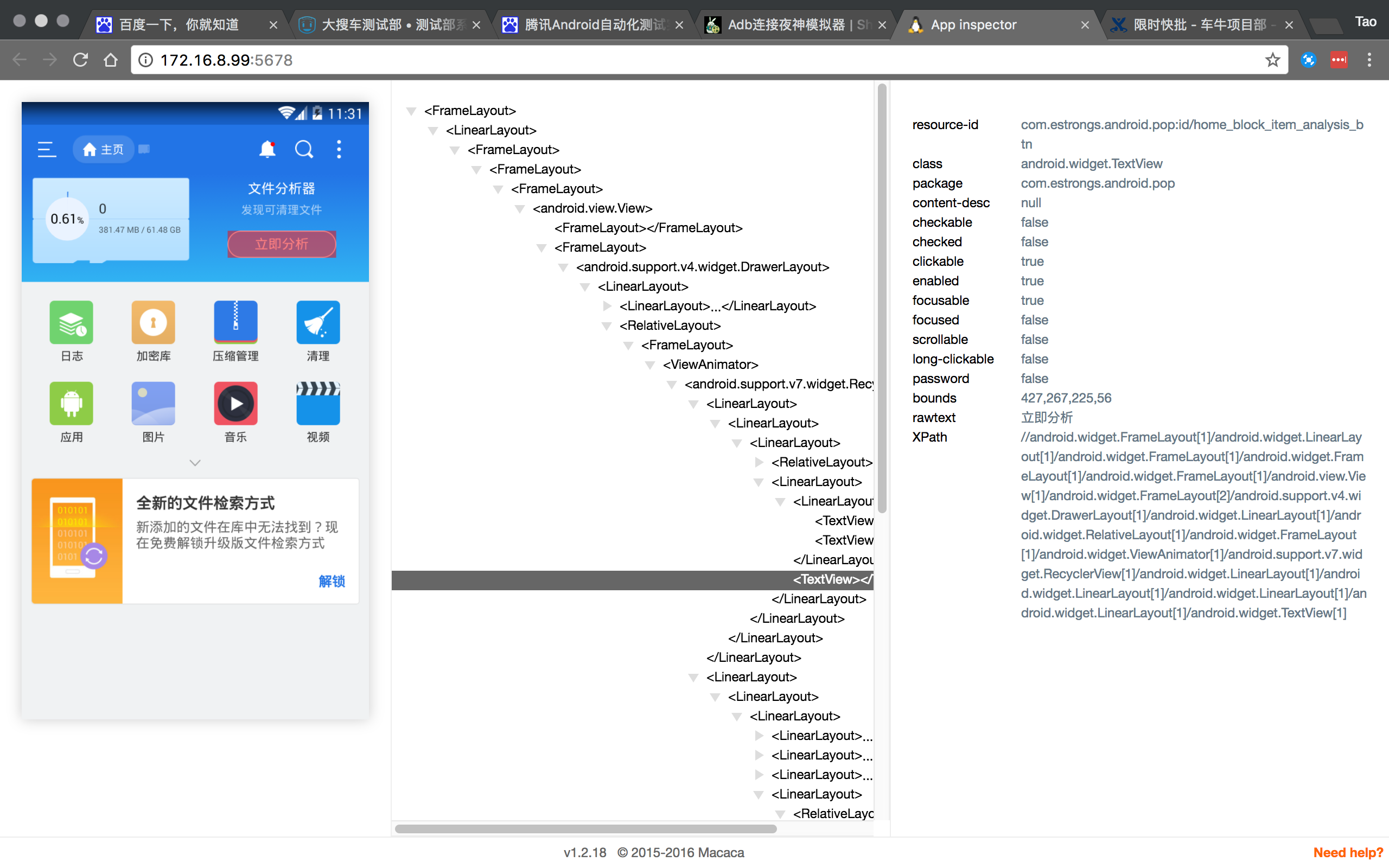

浏览器查看结果如图:
